เครื่องเล่นแผ่นเสียง Technics SL-1300G (New)

Name: เครื่องเล่นแผ่นเสียง Technics SL-1300G (New)
SKU: 01-TEC-SL-1300G
Availability: OutOfStock

฿136,900.00

Color

ล้างค่า

รหัสสินค้า: 01-TEC-SL-1300G หมวดหมู่: Technics/Panasonic, เครื่องเล่นแผ่นเสียง

Features

Coreless Direct Drive Motor Achieving Stable Rotation

In the SL-1300G, the use of a coreless direct-drive motor with no iron core eliminates uneven rotation of the turntable known as cogging. Also, the twin-rotor construction reduces the bearing load while maintaining high torque, and reduces minute vibrations during rotation. Furthermore, the SL-1300G’s motor was redesigned to eliminate subtle vibrations that could affect sound quality. To improve rigidity, the same reinforcement pattern as the Reference Class SL-1000R/SP-10R was used for the coil mounting base.

Motor-Drive System, ΔΣ-Drive (Delta Sigma Drive)

Unlock a realm of audio precision with the ΔΣ-Drive – a state-of-the-art system harnessing Technics’ expertise in PWM signal processing. In addition to reducing harmonics, the drive suppresses vibrations from the motor for smoother, more accurate rotation, ensuring a rich reproduction of the music.

Vibration Resistance Design

Three-layered Turntable Platter

The turntable has a three-layered construction with a rigidly combined brass and aluminium die-cast platter. With a deadening rubber covering its entire rear surface to eliminate unnecessary resonance, thereby achieving high rigidity and vibration damping. This delivers smooth rotational stability and inertial mass surpassing the SP-10MK2, the direct-drive turntable standard used by broadcast stations worldwide, as well as having more than twice the inertial mass of the SL-1200MK5.

Two-layered Cabinet Construction

The SL-1300G ensures high rigidity by using a body with a two-layered construction that solidly unifies the BMC and the aluminium die-cast chassis. Reinforcing ribs have been added between the motor/tone arm on the top panel. This improves rigidity and vibration damping characteristics.

High-level Balance Adjustment

When the weight distribution of the turntable is uneven, excess vibration or noise occurs during rotation, which causes degradation in sound quality. Therefore, the balance of the turntable is adjusted at the factory by using specialized high-precision balance adjustment equipment for each and every item after the turntable is assembled. Turntables that have undergone adjustment are labelled with a sticker reading “BALANCED” to indicate that adjustment has been done.

Multi-Stage Silent Power Supply

Low-Noise Switching Circuit

Use of a high-speed switching power supply ensures a stable supply capacity and less ripple and humming. Applying a switching power supply to a turntable eliminates the need for a large transformer and countermeasures for the ensuing mechanical vibrations. A switching frequency of above 100 kHz limits the impact of noise on the music playback bandwidth.

Current Injection Active Noise Cancelling

This technology combines a noise detection device with an error amplifier. It detects residual noise in the power supply and applies an inverse phase current to remove noise components. It removes low frequency noise more effectively than a regulator to ensure a more ideal power supply.

Tonearm Achieving High Initial-Motion Sensitivity

The tonearm, a crucial component for precise reading, tracks the record’s rotation. Inherited from Technics, it employs a lightweight, rigid aluminium pipe in the traditional static-balance universal Sshape. Featuring a gimbal suspension and high-precision bearing, it achieves high initial-motion sensitivity through manual assembly by skilled artisans. This meticulous construction ensures accurate tracing of record grooves. Plus, it includes an auxiliary weight, providing flexibility for a variety of pickup cartridges.

Features for Clearer Sound

For the insulators supporting the body, the SL-1300G uses special silicon rubber that ensures high vibration damping characteristics and long-term reliability.

Cardboard Cushioning and Packaging Materials

SL-1300G Eco-friendly Cushioning Packaging Materials

The SL-1300G adopts cardboard cushioning and packaging materials. The cushioning has been changed from styrene foam to corrugated cardboard, reducing the weight of plastic used by more than 70% compared to SL-1200 (ref.model).

*Design may vary depending on the model

Specs

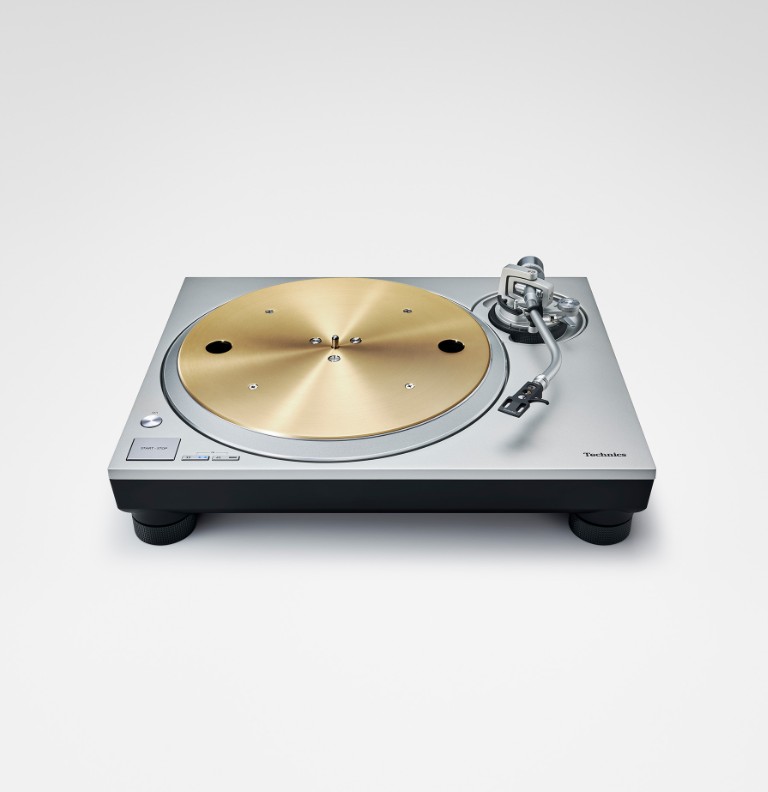

Photo of Direct Drive Turntable System SL-1300G

Silver
Black

Size and Weight

Height 173mm

Width 453mm

Depth 372mm

Weight 13.0kg

Turntable Section

Drive Method Direct Drive
Motor Brushless DC motor
Turntable Speeds

33-1/3, 45 and 78* rpm

* The turntable speed will be 78.26 rpm when set to 78 rpm.
Starting Torque 0.32 N・m (3.3kgf・cm)
Build-up Characteristics 0.7 s. from standstill to 33- 1/3 rpm
Braking system Electronic brake
Wow and Flutter 0.025%　W.R.M.S.
Turntable Platter
- Brass and aluminium die-cast combined
  Diameter：332mm
  Weight：Approx. 3.6kg (Including a rubber sheet)

Tonearm Section

Type Static Balance
Effective Length 230mm
Overhang 15mm
Tracking Error Angle
- Within 2° 32’　(at the outer groove of 30cm(12″) record)
  Within 0° 32’　(at the inner groove of 30cm(12″) record)
Offset Angle 22°
Arm Height Adjustment Range 0 – 6mm
Stylus Pressure Adjustment Range 0 – 4g (Direct Reading)
Headshell weight Approx. 7.6g
Applicable Cartridge Weight Range
- (without auxiliary weight)
  5.6 – 12.0g
  14.3 – 20.7g (including head shell)
  (with small auxiliary weight)
  10.0 – 16.4g
  18.7 – 25.1g (including head shell)
  (with big auxiliary weight)
  14.3 – 19.8g
  23.0 – 28.5g (including head shell)
Cartridge Mounting Dimension 12.7 mm (1/2″) interval
Head Shell Terminal Lug 1.2mmφ 4-pin terminal lug

Terminals

Audio Output
- PHONO (Pin Jack) x 1
  EARTH TERMINAL x 1

General

Power Supply AC220-240 V, 50/60 Hz
Power Consumption
- For UK
  10 W (ON)
  0.3 W (OFF)For other countries
  10 W (Power ON)
  0.3 W (Power OFF)
Dimensions (W x H x D) 453 x 173 x 372 mm
Weight Approx. 13.0kg
Operating temperature range 0℃ to +40℃
Operating humidity range 35% to 80% RH (no condensation)
Accessories
- Turntable, Turntable sheet, Dust cover,
  EP record adaptor, Balance weight,
  Auxiliary weight, Head shell, Overhang gauge,
  Screw set for cartridge, PHONO cable,
  PHONO earth lead, AC mains lead, Screw set for turntable,
  Owner’s Manual

Color	Black, Silver
