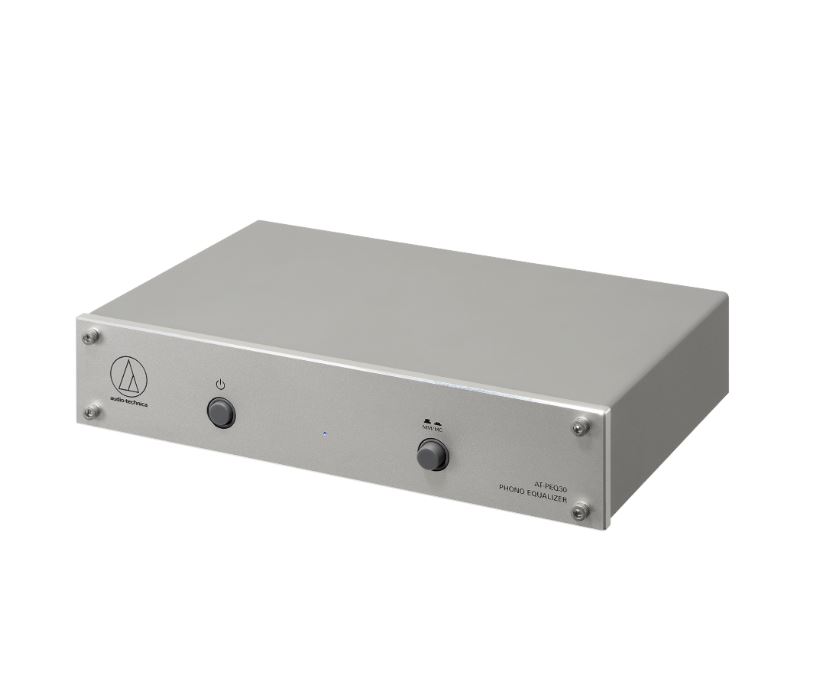

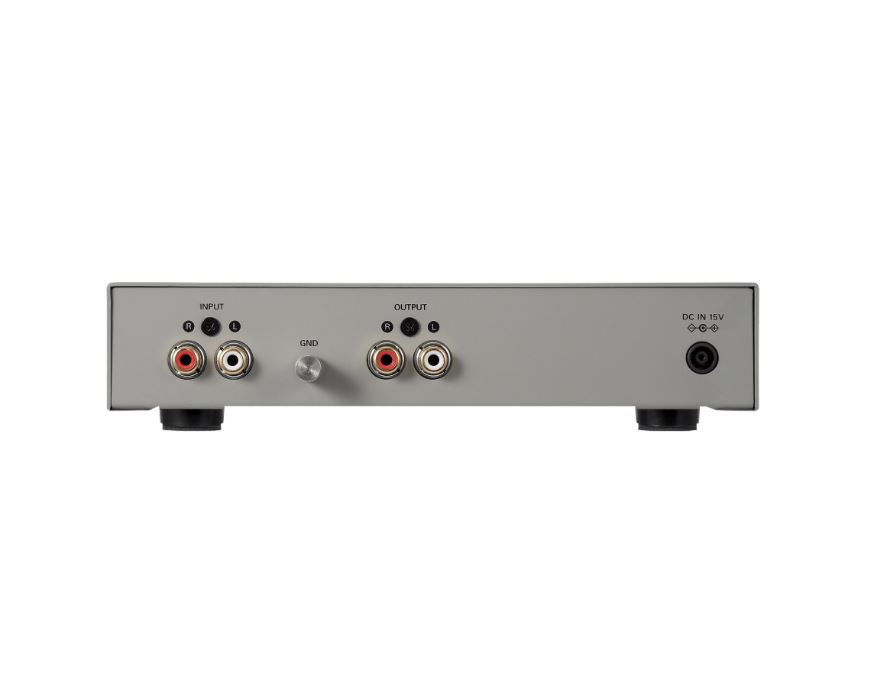

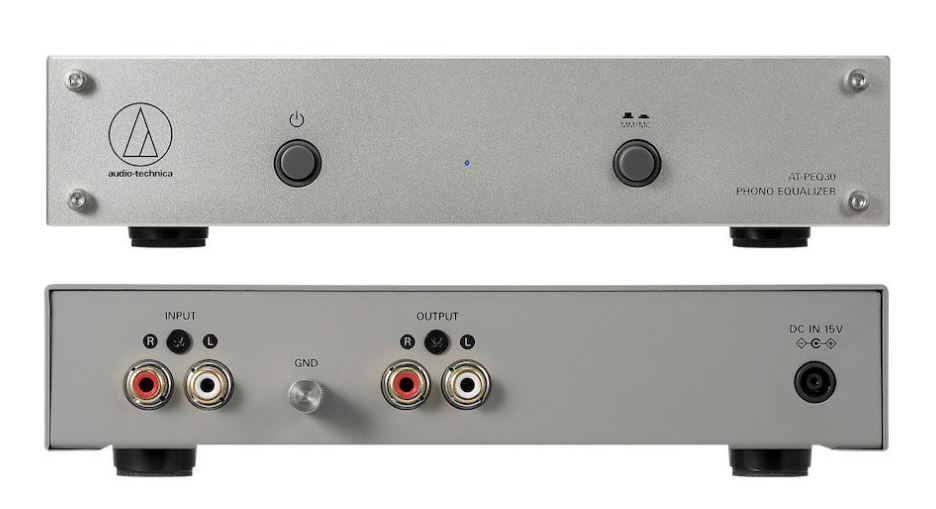

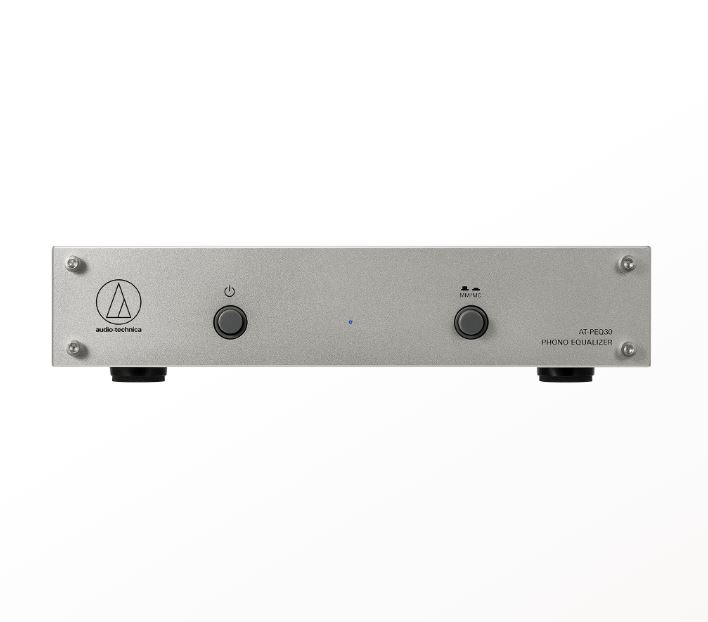

AT-PEQ30
The AT-PEQ30 phono equalizer is designed specifically to upgrade a turntable with a built-in phono amplifier or to add a phono. It is compatible with turntables with VM (dual magnet), MM (moving magnet), and MC (moving coil) cartridges. The PEQ30 benefits from Audio-Technica’s years of analogue audio expertise and uses the finest quality parts in a layout that is optimized for low noise and minimum distortion.
Features
- Selectable MM and MC input with fixed gain and impedance allows for compatibility with a wide range of moving magnet and moving coil cartridges
- High-quality FET inputs ensure a low noise signal when incorporated with a negative feedback-type phono equalizer circuit
- Precision components provide an excellent RIAA response for best-in-class performance
- The all metal construction enclosure provides superior isolation from radio and electronic noise interference
- The machined aluminium front panel and gold-plated input/output RCA connectors are examples of the high-grade material used throughout
Specifications
| Phono Equalizer | |
|---|---|
| Input Impedance | MM type: 47 kiloohms MC type: 120 ohms |
| Input Sensitivity | MM type: 4.5 mV MC type: 0.28 mV |
| Rated Output | MM type: 250 mV MC type: 250 mV |
| Gain | MM type: 35 dB MC type: 59 dB |
| Signal-to-Noise Ratio | MM type: 100 dB MC type: 74 dB |
| RIAA Deviation | (20 to 20,000 Hz) MM type: ±0.5 dB (20 to 20,000 Hz) MC type: ±0.5 dB |
| Power Supply | DC 15 V, 1.2 A |
| Power Consumption | 2.5 W |
| Dimensions | 47 mm (1.85″) H x 197.5 mm (7.78″) W x 125.5 mm (4.94″) D (excluding protrusions) |
| Weight | About 890 g |
| Accessories Included | AC adapter |
