ST 80 SE

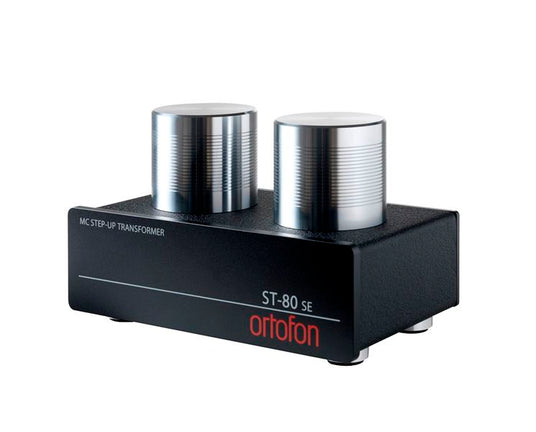

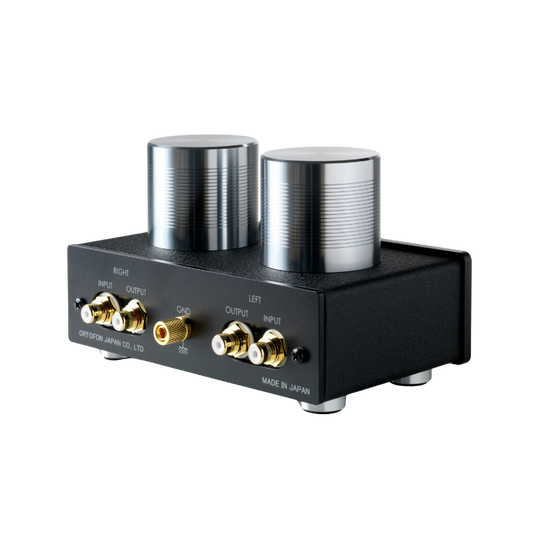

The ST-80 Special Edition Moving coil transformer delivers a detailed reproduction with a touch of warmth accompanied by a full bodied sound quality. Compared with existing models, the ST-80 SE has a larger bobbin, more layers in the permalloy core, and more coil windings.

Moving Coil transformer

HiFi4all.dk May 2012
Specification
- (MM Position)
- Through Connection Inside
- (MC Position)
- Frequency Response: 10 ~ 100kHz (+0.5dB -2.5dB)
- Gain: 27dB (47kΩ/1kHz)
- Input Impedance: 2Ω ~ 6Ω
- Load Impedance: >47kΩ
- Channel Balance: <0.5dB
- Channel Separation: >90dB (1kHz)
- Dimension: 153 W x 95 H x 110 D mm
- Weight: 1.36kg
